Indonesian IQF Vegetables Metal Detection & X-Ray 2026 Guide

A practical, 5‑minute playbook from the Indonesia‑Vegetables team to set realistic sensitivity targets (mm), choose metal detector vs x‑ray for IQF vegetables, and build audit‑proof BRCGS Issue 9 records for EU/US buyers.

If you’re exporting Indonesian IQF vegetables in 2026, foreign-body control is the buyer conversation you can’t afford to wing. We’ve seen plants pass tier-1 retailer audits with zero findings and we’ve seen great factories stumble on the basics like test-piece sizes and weak records. In our experience, a simple, consistent system beats shiny specs every time.

Here’s the exact, field-tested approach we use on lines producing items like Premium Frozen Sweet Corn, Frozen Mixed Vegetables, Premium Frozen Okra, and Frozen Paprika (Bell Peppers).

The 3 pillars of a 2026-ready foreign-body program

Put the right technology in the right place. Post-freezer, post-pack is ideal for metal detectors when using non-metallized films. If you must run metallized film, use x-ray at finished pack and consider a bulk metal detector upstream as a pre-screen.
Set sensitivity targets you can actually achieve on your line. Calibrate targets by aperture height, bag size, and product effect. Commit to stainless 316 as the hardest-to-detect baseline.
Make your verification bulletproof. Challenge tests, fail-safe checks, holds, and traceable records that an auditor can follow in under two minutes. That’s the gold standard under BRCGS Issue 9.

Week 1–2: Map your line and validate the physics

Do I need an x-ray if we use metallized film?

If your finished bags are metallized, a downstream metal detector won’t work. Run x-ray at the finished pack. Where possible, also keep a metal detector earlier in the flow (e.g., post-IQF freezer, pre-pack) to remove obvious metals and reduce x-ray load. For non-metallized PE/PP films, a finished-pack metal detector remains the most cost-effective CCP.

Where to place the unit: post-freezer or post-pack?

Post-freezer, pre-pack: Good for catching machinery wear from vibratory feeders and transfer points. Often an OPRP.
Post-pack, finished goods: Best for retail trade. Usually the CCP, because it verifies the actual sellable unit. If the film is metallized, use x-ray here.

Practical tip: Keep product at a stable -18 °C or colder. Warmer, wet, or slushy IQF product increases “product effect” and drives false rejects.

What sensitivity in mm do EU/US buyers expect?

Across 500 g–1 kg retail IQF vegetables, most EU/US buyers we work with accept these finished-pack metal detector targets (stainless test piece 316 preferred):

500 g bags: Fe 1.5 mm, Non-Fe 2.0 mm, SS 2.5 mm (316). Many tier-1 retailers push SS 2.0–2.5 mm, but 2.5 mm is a realistic, defensible target.
1 kg bags: Fe 2.0 mm, Non-Fe 2.5 mm, SS 3.0 mm (316).
2.5 kg foodservice: Fe 2.5 mm, Non-Fe 3.0 mm, SS 3.5–4.0 mm (316).

If you run x-ray at finished pack, typical detection for stainless equivalents on 500 g–1 kg bags is 1.5–2.5 mm depending on product thickness, density, and system energy. Glass detection is commonly 2.0–3.0 mm for these packs. Validate on your actual products, not catalog promises.

Aperture size and bag weight: how they change achievable sensitivity

Here’s a rule-of-thumb for conveyor metal detectors on frozen vegetables at -18 °C using dual/multi-frequency tech. Actual values depend on brand and setup, but this is a fair starting point for trials:

120 mm aperture height: Fe 1.2 mm, Non-Fe 1.5 mm, SS 2.0 mm (316)
150 mm: Fe 1.5 mm, Non-Fe 2.0 mm, SS 2.5 mm (316)
200 mm: Fe 2.0 mm, Non-Fe 2.5 mm, SS 3.0 mm (316)
250 mm: Fe 2.5 mm, Non-Fe 3.0 mm, SS 3.5–4.0 mm (316)

Two levers that quietly matter:

Product height through the aperture. Keep the bed depth low and even. Don’t mound 1 kg of Frozen Mixed Vegetables into a “hill.” Flatten the profile with a spreader before the detector.
Orientation and test-piece type. Use certified spheres. Always specify 316 stainless for testing. 304 is easier to detect and can create false confidence.

Week 3–6: Set the CCP/OPRP, install, and lock the routine

Should metal detection be a CCP or an OPRP?

Finished-pack metal detection or x-ray for non-metallized retail bags: make it the CCP. You’re verifying the actual unit that leaves the site, and there’s no later control step.
Upstream bulk metal detection pre-pack: often an OPRP. It reduces risk before the CCP but doesn’t verify finished units.

Document the classification with a risk assessment referencing foreseeable metal sources, historical incidents, product susceptibility, and customer expectations. BRCGS auditors will ask “Why CCP?” and your rationale should be one page or less.

Challenge test procedures that pass audits

Run with product on the belt at normal speed. Use certified test spheres for Fe, Non-Fe, SS 316 at your agreed critical limits. Test at start of shift, hourly, product changeovers, and end of shift. Also after any stoppage >30 minutes and after maintenance.

Method we use:

Pass each test sphere through the product stream in three positions: leading edge, center, trailing edge. And across left/center/right of the belt.
Verify reject device, full-bin sensor, air pressure, and detector fault alarm each time. If any fail-safe fails, the test fails.
On fail: stop, re-test, segregate from time of last good check, investigate, and document disposition.

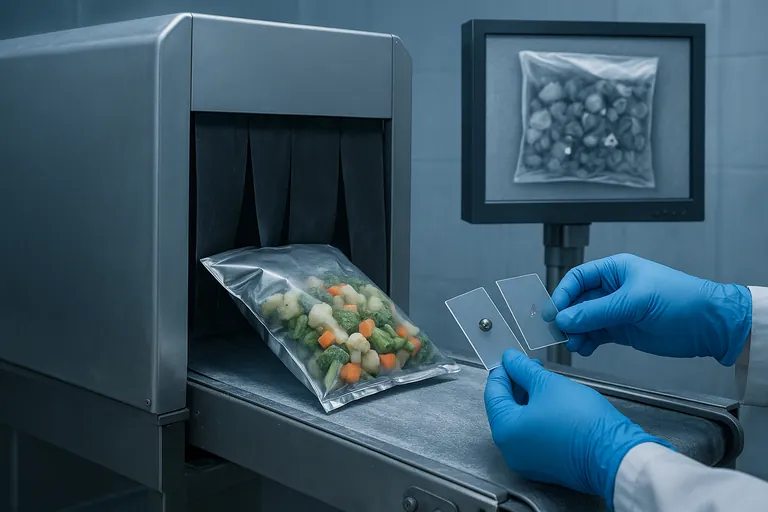

How to validate x-ray detection on an IQF line

Build a validation matrix by pack size and product family. For example, 500 g Premium Frozen Sweet Corn, 1 kg Premium Frozen Okra, 500 g Frozen Paprika (Bell Peppers).
Use certified stainless spheres, glass, and calcified bone/mineral test cards where relevant to your hazard analysis.
Challenge across the densest part of the bag and the thinnest. Set sensitivity to meet the worst case. Record grayscale images and store them for your audit evidence pack.
Define your maximum acceptable false-reject rate during validation, typically <1–2% at target sensitivity on a real run.

Week 7–12: Optimize and make it audit-proof

Troubleshooting false rejects in frozen vegetables

Temperature creep. Ensure core product stays ≤-18 °C. Allow enough tempering time post-blanch for items like Premium Frozen Edamame so you’re not scanning semi-warm centers.
Product effect on salty or conductive items. Use auto-learn and dual-frequency modes. If needed, slow belt speed 10–15% to reduce noise.
Mechanical vibration. Stabilize the detector frame and isolate from shakers.
Product profile. Even out feed with a short horizontal section before the aperture.

What BRCGS Issue 9 expects you to show in 2026

Documented critical limits and test-piece sizes for Fe, Non-Fe, SS 316 (or x-ray MDLs by contaminant type) that align with your risk assessment and buyer specs.
Defined test frequency with records. Clear fail-safe checks. Evidence of holds and product disposition when a test failed.
Calibration and verification by trained personnel, plus periodic third-party service reports.
Trending. We chart test results and false-reject rates monthly. Auditors like to see action when trends drift.

Buyer audit checklist you should rehearse

Demonstrate a live challenge test. Show rejects and alarms work. Produce the hold-and-release SOP. Then open last week’s hourly checks and match timestamps to production lots.

Quick answers to the questions we hear most

How do I set “good” targets by bag size?

500 g retail: aim Fe 1.5 mm, Non-Fe 2.0 mm, SS 2.5 mm (316). X-ray stainless equivalent often 1.5–2.0 mm.
1 kg retail: Fe 2.0 mm, Non-Fe 2.5 mm, SS 3.0 mm. X-ray 2.0–2.5 mm.
2.5 kg foodservice: Fe 2.5 mm, Non-Fe 3.0 mm, SS 3.5–4.0 mm. X-ray 2.5–3.5 mm depending on pack thickness.

Metal detection vs x-ray for peas vs mixed veg

Peas create a relatively even bed that’s kind to metal detectors. Mixed veg can clump and create variable thickness. For x-ray, thicker or denser areas mask smaller contaminants, so normalize layer thickness before the beam.

Make your paperwork unambiguous

Sample COA wording that satisfies most EU/US buyers:

Foreign-body control: Finished-pack metal detection performed on 100% of units at -18 °C or below.
Detector specification: Conveyor metal detector, aperture 150 mm (H) x 300 mm (W), dual frequency.
Validated sensitivity: Fe 1.5 mm, Non-Fe 2.0 mm, SS 316 2.5 mm (spherical test pieces). All test pieces detected at start, hourly, product changeovers, and end of shift. All checks passed for this lot.
Fail-safe controls: Reject confirmation, bin full sensor, line stop on fault, air pressure sensor verified at each challenge.

If using x-ray, replace with: “X-ray inspection of finished packs at 0.8 m/s conveyor speed. Validated MDLs: SS 316 2.0 mm equivalent, glass 2.5 mm. Images and validation records available upon request.”

Daily/hourly challenge test record essentials:

Line, product, lot, detector ID, aperture size.
Time stamps for start/hourly/changeover/end checks.
Test-piece sizes and materials, pass/fail per position.
Fail-safe checks: reject, bin sensor, air, alarm.
Name/signature, corrective action, product hold range if failed.

Trends we’re seeing heading into 2026

More retailers accept x-ray as the CCP for metallized recyclable films. But they still ask for stainless 316 equivalence in mm terms.
Multi-frequency metal detectors with better product-effect cancellation are helping lines hit SS 2.5 mm on 500 g packs consistently.
Buyers are asking for clearer COA wording and faster retrieval of digital images/logs during remote audits.

Need help setting realistic targets for your 500 g and 1 kg SKUs or stress-testing your x-ray validation matrix? Reach out and we’ll walk your exact line constraints and buyer specs with you. Contact us on whatsapp.

If you’d like to see the range of IQF SKUs we process under these controls, you can also View our products.

Final takeaway: don’t chase someone else’s spec sheet. Prove your own sensitivity on your own line, write it down clearly, and make it repeatable. That’s what gets you through EU/US buyer reviews and BRCGS Issue 9 audits without drama.
